CÔNG TY TNHH TM & DV TĂNG MINH PHÁT NHÀ PHÂN PHỐI THIẾT BỊ CẦN ĐIỀU KHIỂN, TAY TRANG ĐIỀU KHIỂN, TAY CẦM ĐIỀU KHIỂN TẠI KHU VỰC VIỆT NAM.
Ứng Dụng:
Tay trang điều khiển ST0, ST1, ST4 Spohn Burkhardt ( Joystick ST0,ST1,ST4 ) được sử dụng trong bảng điều khiển, phương tiện xây dựng & phương tiện đô thị, máy nông nghiệp, sàn công tác, trong ngành đường sắt, ngành vận tải biển, khu vực cảng.
Đặc Điểm & Thông Số Kỹ Thuật

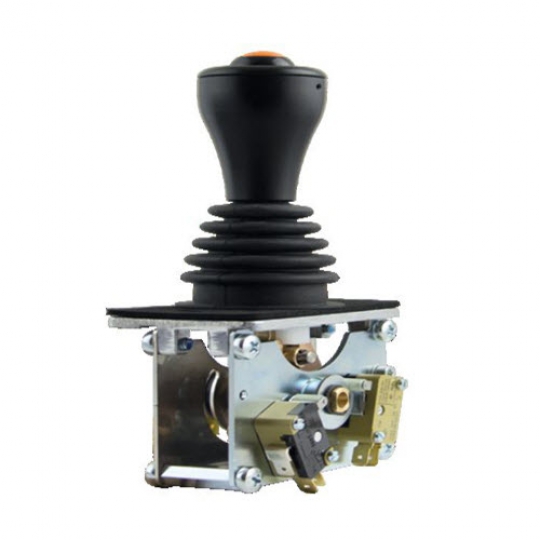

Tay trang điều khiển ST0| Joystick ST0
- Joystick ST0 với cơ cấu khớp nối bằng kim loại chắc chắn được sử dụng theo tiêu chuẩn bởi Spohn + Burkhardt đảm bảo tuổi thọ dài và số lần chuyển mạch cao. Bao gồm tính năng tự đặt lại, phanh ma sát và khóa cơ học, khái niệm modular cho phép một loạt các biến thể rộng lớn. Chúng tôi cung cấp thiết bị này dưới dạng phiên bản thực hiện đầu ra theo bước 5-0-5 hoặc có tính năng tự đặt lại. Phiên bản kết hợp với vị trí khóa và vị trí tiếp xúc tạm thời cũng có thể thực hiện được. Với việc trang bị công tắc vi mô, yếu tố tiếp xúc kép, bộ biến trở, hoặc bộ mã hóa tuyệt đối, nó có thể được sử dụng cho nhiều nhiệm vụ điều khiển đòi hỏi. Với giao diện bus tích hợp, nó hoạt động một cách đáng tin cậy như một nút bus cũng như với bộ khuếch đại van để kích hoạt van solenoid.
- Tay cầm ST0 với các tính năng quang học thường được sử dụng trong bảng điều khiển, máy xây dựng, phương tiện giao thông đô thị và trong nền tảng làm việc.
Datasheet sản phẩm

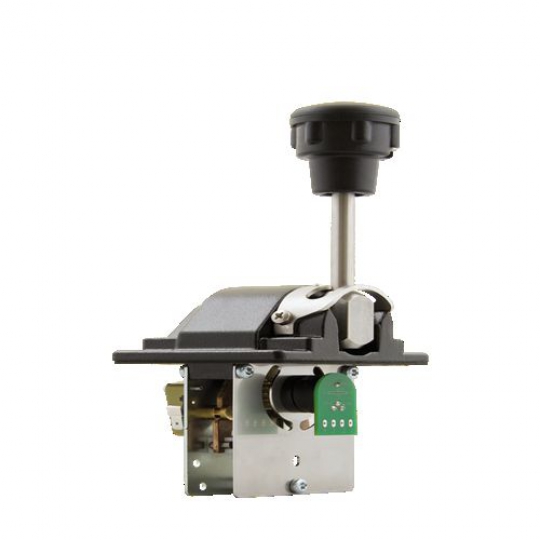

Tay trang điều khiển ST1 | Joystick ST1
- Joystick ST1 Được phát triển cho các yêu cầu môi trường khắc nghiệt.
- Ưu tiên thiết kế nhằm đảm bảo loại bảo vệ IP lâu dài ở mặt trước đã dẫn đến sự phát triển của cần điều khiển ST1 với bảng điều khiển silumin mạ crom và/hoặc đúc. Thân tay cầm bằng thép không gỉ hoặc mạ kẽm cung cấp khả năng điều khiển chính xác trên trục bịt kín thông qua các bánh răng côn, tiếp điểm, chiết áp và bộ mã hóa có thể thay đổi theo bậc hoặc vô cấp, khóa, có phanh cài đặt lại hoặc phanh ma sát. Những công tắc này chứng tỏ độ bền và độ tin cậy của chúng trên tàu, du thuyền, giàn khoan dầu ngoài khơi hoặc trong các nhà máy thép
Datasheet sản phẩm
Tay trang điều khiển ST4 | Joystick ST4
- Joystick ST4 được thiết kế đặc biệt cho gió và thời tiết, tuyết và băng. Khối truyền động cải tiến, một giải pháp bằng nhựa đặc biệt; ngay cả khi ủng cao su bị lỗi, nó vẫn đảm bảo khả năng chống thấm và hoạt động tốt nếu có nước xâm nhập.
- Joystick ST4 được phát triển đặc biệt dành cho máy xây dựng và máy nông nghiệp không có cabin, phiên bản này đảm bảo hiệu suất chuyển đổi cao nhất có thể. Dành cho tất cả các máy phải làm việc trong điều kiện thời tiết khắc nghiệt, cho dù lạnh khắc nghiệt, mưa to hay thậm chí là nắng gắt.
Datasheet sản phẩm
TỔNG HỢP LIST CODE
| No. | Brand | Specification |
| 1 | Spohn & Burkhardt | VNS0.2000770 Joystick VNS0 2 F E-N 18 AK R G41 9P1 OER8G- 1 Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Spring return or friction brake view dir: Spring return Mountings in view direction: OER8G- 1 Drive: E-N Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: G41 OER8G- 1 Encoder: OER8G Curve characteristic: 1: linear Extension cable encoder: 2m |
| 2 | Spohn & Burkhardt | VNS0.2000772 Joystick VNS0 2 2 F EA-X 18 KK R G41 9P1 9P1 OER8G- 1 OER8G Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Spring return or friction brake view dir: Spring return Mountings in view direction: OER8G- 1 Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Spring return or friction brake cross di: Spring return Mountings in cross direction: OER8G- 1 Drive: EA-X Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Cross gate (symmetric) Contact: Silver Boot: Rubber boot Handle: G41 OER8G- 1 Encoder: OER8G Curve characteristic: 1: linear Extension cable encoder: 2m OER8G- 1 Encoder: OER8G Curve characteristic: 1: linear Extension cable encoder: 2m |
| 3 | Spohn & Burkhardt | 47177 Spare parts pack Rubber boot V041N Handle:Standard Joystick:VNS0,VCS0,CS1,NS3,NNS0 Operation temperature: -30° till +100°C Material:CR-Neoprene, Color:black |
| 4 | Spohn & Burkhardt | 47177 Spare parts pack Rubber boot V041N Handle:Standard Joystick:VNS0,VCS0,CS1,NS3,NNS0 Operation temperature: -30° till +100°C Material:CR-Neoprene, Color:black |
| 5 | Spohn & Burkhardt | Joystick VNS0 6 F A-Y 18 AK G41 X1 Steps in view direction: 4-0-4 Circuit in view direction: Special circuit 6 double contacts Lever deflection in view direction: 30° Drive: A-Y Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: G41 - Joystick with notching - Switchings Sequence X1 acc. supplied switching diagram |
| 6 | Spohn & Burkhardt | Joystick NS3G11AKEYR - PB203C-R |
| 7 | Spohn & Burkhardt | Joystick NS3G11AKVR - PB203C-L |
| 8 | Spohn & Burkhardt | Joystick NS3G11AKVR - PB203C-L |
| 9 | Spohn & Burkhardt | Joystick NS3G11AKEYR - PB203C-R |
| 10 | Spohn & Burkhardt | Control station FS Drawing : FSMDF-409 STEUERSTAND FS FSMDF-409 Including: S210Y FS S A K.G HG.2100818 (Seat with Y-cut S210Y) 1pcs Joystick VNS0 2 2 F EA-U 11 SKK R 9P1 10 OGP 1pcs Joystick VNS0 2 F A-Y 11 AK R 9P1 OGP |
| 11 | Spohn & Burkhardt | Joystick VNS0 6 F A-Y 18 AK G41 Steps in view direction: 4-0-4 Circuit in view direction: Special circuit 6 double contacts Lever deflection in view direction: 30° Drive: A-Y Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: G41 - Joystick with notching - Switchings Sequence X1 acc. supplied switching diagram |
| 12 | Spohn & Burkhardt | Joystick VNS0 3 3 F V-U 18 KK R G41 Steps in view direction 1-0-1 Circuit in view direction (13) Lever deflection in view direction 14° Spring return or friction brake view dir Spring return Steps in cross direction 1-0-1 Circuit in cross direction (13) Lever deflection in cross direction 14° Spring return or friction brake cross di Spring return Drive V-U Lever length 180mm Mounting Front Escutcheon plate S3 Rubber boot holder Engraving No engraving Gate Cross gate (symmetric) Contact Silver Boot Rubber boot Handle G41 Note: contact sequence with 3 double contact elements each axis: 1-0-1 steps without zero contact without potentiometer |
| 13 | Spohn & Burkhardt | 47182 Spare parts pack Double contact element with SILVER plated contacts Joystick:VNS0,NNS0,NS00 |
| 14 | Spohn & Burkhardt | Encoder OER8B- S0120 Extension cable encoder: 5m Replacement for Type OEGRA 208-B Note: To attach this encoder to the existing joystick, you must mount a new contact block with the correct coupling (See Item 2) Confirm specification/ serial of the existing joystick when order |
| 15 | Spohn & Burkhardt | NS0 contact block NS0 KONTAKTBLOCK Note: Price we can be calculated when have Joystick informations |
| 16 | Spohn & Burkhardt | Joystick VNS0 2 2 F EA-X 11 SAK R 9P1 10 OER8B- 1 |
| 17 | Spohn & Burkhardt | VNS0.2003014 Joystick Drawing : SS14642-5 VNS0 5 F E-N 18 AK R G41 T SS SS14642-5 |
| 18 | Spohn & Burkhardt | 23508 GM0N6VR20.20 controller |
| 19 | Spohn & Burkhardt | Seat S210Y FS S A K.G HG Seat: seat with Y-cut S210Y Armrests: On the seat Armrests on the seat: Armrest standard Upholstery: Upholstery textile black Headrest: Headrest big anthracite Belt: Shoulder belt Addition: adjustable slide set |
| 20 | Spohn & Burkhardt | 14147 Turntable black for rotatable control stations with eccentric brake SV0C14-02A |
| 21 | Spohn & Burkhardt | 14492 Cast iron foot black rotatable control stations with eccentric brake SV0C11UG-2A |
| 22 | Spohn & Burkhardt | 12390 Brake lever for rotatable control stations with eccentric brake SV0C14E |
| 23 | Spohn & Burkhardt | Joystick Drawing : SS7757-34T-UGN VNS0 3 3 F EA-X 11 AK R SS7757-34T-UGN Note: - without Potentiometer - original handle replaced by UGN handle Yêu cầu sales check lai code với KH |
| 24 | Spohn & Burkhardt | Seat WITHOUT SEAT SHN08A.P24 Seat: without seat Lower seat structure: Motorised seat adjustment combined with pneumatic suspension 24 V Upholstery: - Replacement of the former used motorized seat adjustment "M" by "SHN-08A" combined with the pneumatic suspension "P24" (24 VCD). |
| 25 | Spohn & Burkhardt | Joystick CS1G11AKVR - CS1-A16 |
| 26 | Spohn & Burkhardt | 12966 Master controller with CAN-bus-interface CS1G11AKV(R)-CAN1006T |
| 27 | Spohn & Burkhardt | Joystick VNS0 2 2 F V-U 18 AK R G41 HD Z 5P0 5P0 |
| 28 | Spohn & Burkhardt | Joystick VNS0 2 2 F V-N 18 KK R G41 Z 5P0 5P0 |
| 29 | Spohn & Burkhardt | 26334 OER8B-1 Optoelectronical absolute encoder for joysticks VNS0xx, output signals: 8-bit-binary code, 2 direction signals, connection cable 0.4 m with D-sub plug |
| 30 | Spohn & Burkhardt | Joystick Drawing : SS7757-34T-UGN VNS0 3 3 F EA-X 11 AK R SS7757-34T-UGN Note: - without Potentiometer - original handle replaced by UGN handle Yêu cầu sales check lai code với KH |
| 31 | Spohn & Burkhardt | 26334 OER8B-1 Optoelectronical absolute encoder for joysticks VNS0xx, output signals: 8-bit-binary code, 2 direction signals, connection cable 0.4 m with D-sub plug |
| 32 | Spohn & Burkhardt | 47177 Spare parts pack Rubber boot V041N Handle:Standard Joystick:VNS0,VCS0,CS1,NS3,NNS0 Operation temperature: -30° till +100°C Material:CR-Neoprene, Color:black |
| 33 | Spohn & Burkhardt | Joystick VNS0 2 2 F V-U 11 AK R 9P1 9P1 Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Spring return or friction brake view dir: Spring return Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Spring return or friction brake cross di: Spring return Drive: V-U Lever length: 110mm Mounting: Front Escutcheon plate: S1 Rubber boot holder Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: UGN UGN.1702601 Mounting position 1: P9 H S RD Mounting position 2: P9 H S GN Mounting position 3: P9 F S YE Mounting position 4: P9 F S BU Mounting position 6 right: P9 F S WH |
| 34 | Spohn & Burkhardt | Joystick VNS0 2 F A-Y 11 AK R 9P1 Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Spring return or friction brake view dir: Spring return Drive: A-Y Lever length: 110mm Mounting: Front Escutcheon plate: S1 Rubber boot holder Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: UGN UGN.1703457 Mounting position 1: P9 H S RD Mounting position 2: P9 H S GN Mounting position 3: P9 F S YE Mounting position 4: P9 F S BU Mounting position 6 left: P9 F S WH |
| 35 | Spohn & Burkhardt | 26334 OER8B-1 Optoelectronical absolute encoder for joysticks VNS0xx, output signals: 8-bit-binary code, 2 direction signals, connection cable 0.4 m with D-sub plug |
| 36 | Spohn & Burkhardt | Joystick VNS0 2 2 F EA-X 11 AK R 9P1 9P1 OER8G- 1 OER8G- 1 Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Spring return or friction brake view dir: Spring return Mountings in view direction: OER8G- 1 Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Spring return or friction brake cross di: Spring return Mountings in cross direction: OER8G- 1 Drive: EA-X Lever length: 110mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: UGA 8 OER8G- 1 Encoder: OER8G1 Curve characteristic: linear Extension cable encoder: 2m OER8G- 1 Encoder: OER8G1 Curve characteristic: linear Extension cable encoder: 2m UGA 8.1804253 Type UGA Mounting position 1: P9 F S RD Mounting position 2: P9 F S GN Deadman: 5T |
| 37 | Spohn & Burkhardt | Joystick VNS0 2 F E-N 11 AK R 9P1 OER8G- 1 Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Spring return or friction brake view dir: Spring return Mountings in view direction: OER8G- 1 Drive: E-N Lever length: 110mm Mounting: Front Escutcheon plate: S3 Rubber boot holder Engraving: No engraving Gate: Limiting gate (symmetric) Contact: Silver Boot: Rubber boot Handle: UGA 8 OER8G- 1 Encoder: OER8G1 Curve characteristic: linear Extension cable encoder: 2m UGA 8.1804253 Type UGA Mounting position 1: P9 F S RD Mounting position 2: P9 F S GN Deadman: 5T |
| 38 | Spohn & Burkhardt | NS0 contact block NS0 3 A 40 |
| 39 | Spohn & Burkhardt | 47177 Spare parts pack Rubber boot V041N Handle:Standard Joystick:VNS0,VCS0,CS1,NS3,NNS0 Operation temperature: -30° till +100°C Material:CR-Neoprene, Color:black |
| 40 | Spohn & Burkhardt | 26334 OER8B-1 Optoelectronical absolute encoder for joysticks VNS0xx, output signals: 8-bit-binary code, 2 direction signals, connection cable 0.4 m with D-sub plug |
| 41 | Spohn & Burkhardt | VNS0.2202854 Joystick VNS0 2 2 F V-X 18 AK R IPZ 3P00 5P00 |
| 42 | Spohn & Burkhardt | VNS0.2202855 Joystick VNS0 2 F E-U 18 SZK R IPZ 5P00 |
| 43 | Spohn & Burkhardt | VNS0.2202857 Joystick VNS0 2 2 F EA-X 11 AK R 9P1 9P1 OER8G- 1 OER8G- 1 |
| 44 | Spohn & Burkhardt | VNS0.2202858 Joystick VNS0 2 2 F EA-X 11 SAK R 9P1 10 OER8B- 1 |
| 45 | Spohn & Burkhardt | 48749 Electric height, tilt and longitudinal adjustment for seats, version 12 VDC, with adapter plate, terminals, without control unit SHN 08A Note: The requested motorized seat adjustment, wiring harness and also the switch are not available anymore. Possible replacement for the operator console FSMDF409 would be the motorized adjustment SHN 08A |
| 46 | Spohn & Burkhardt | Joystick NS3G11AKVR - PB203C-L |
| 47 | Spohn & Burkhardt | VNS0.2203662 Joystick K VNS0 2 2 F V-N 18 KK R G41 9P1 9P1 OER8G- 1 OER8G-1 Drive: V-N Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Operating type view direction: Spring return Mountings in view direction: OER8G- 1 Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Operating type cross direction: Spring return Mountings in cross direction: OER8G- 1 Handle: G41 Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Cross gate (symmetric) Contact: Gold OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m |
| 48 | Spohn & Burkhardt | VNS0.2203663 Joystick K VNS0 2 2 F V-U 18 KK R G41 9P1 9P1 OER8G- 1 OER8G-1 Drive: V-U Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Operating type view direction: Spring return Mountings in view direction: OER8G- 1 Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Operating type cross direction: Spring return Mountings in cross direction: OER8G- 1 Handle: G41 Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Cross gate (symmetric) Contact: Gold OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m |
| 49 | Spohn & Burkhardt | VNS0.2203662 Joystick K VNS0 2 2 F V-N 18 KK R G41 9P1 9P1 OER8G- 1 OER8G-1 Drive: V-N Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Operating type view direction: Spring return Mountings in view direction: OER8G- 1 Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Operating type cross direction: Spring return Mountings in cross direction: OER8G- 1 Handle: G41 Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Cross gate (symmetric) Contact: Gold OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m |
| 50 | Spohn & Burkhardt | VNS0.2203663 Joystick K VNS0 2 2 F V-U 18 KK R G41 9P1 9P1 OER8G- 1 OER8G-1 Drive: V-U Steps in view direction: Zero notching Circuit in view direction: 9P1 Lever deflection in view direction: 36° Operating type view direction: Spring return Mountings in view direction: OER8G- 1 Steps in cross direction: Zero notching Circuit in cross direction: 9P1 Lever deflection in cross direction: 36° Operating type cross direction: Spring return Mountings in cross direction: OER8G- 1 Handle: G41 Lever length: 180mm Mounting: Front Escutcheon plate: Plastic escutcheon plate transparent Engraving: No engraving Gate: Cross gate (symmetric) Contact: Gold OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m OER8G- 1 Encoder: OER8G1: Curve characteristic: linear Extension cable encoder: 2m |
| 51 | Spohn & Burkhardt | Joystick VNS0 2 2 F V-U 18 AK R G41 HD Z 5P0 5P0 |
| 52 | Spohn & Burkhardt | Joystick VNS0 2 2 F V-N 18 KK R G41 Z 5P0 5P0 |
| 53 | Spohn & Burkhardt | Joystick GM0N6VR2020 |
| 54 | Spohn & Burkhardt | NS3.2204550 Joystick NS3 G 11 AK E-Y R PB203C-R |
| 55 | Spohn & Burkhardt | NS3.2204565 Joystick NS3 G 11 AK V R PB203A-L Note: UGAL handel is a replacement for UGCL |
| 56 | Spohn & Burkhardt | VNS0.2003014 Joystick VNS0 5 F E-N 18 AK R G41 T SS SS14642-5 |
| 57 | Spohn & Burkhardt | VNS0.2205741 Joystick VNS0 3 3 F V-Y 18 KK R G41 Z 40 40 Drive: V-Y Steps in view direction: 4-0-4 Circuit in view direction: 40 Lever deflection in view direction: 30° Operating type view direction: Spring return Steps in cross direction: 4-0-4 Circuit in cross direction: 40 Lever deflection in cross direction: 30° Operating type cross direction: Spring return Mechanical interlock: With mechanical interlock Handle: G41 Z Lever length: 180mm Mounting: Front Escutcheon plate: S3 Rubber boot holder Engraving: No engraving Gate: Cross gate (symmetric) Contact: Silver G41 Z Mechanical interlock: With mechanical interlock Release: Release by lifting |
| 58 | Spohn & Burkhardt | NS3.2205843 Joystick NS3 G 11 AK V R PB203C-L |
| 59 | Spohn & Burkhardt | NS3.2206304 Joystick Drawing: PB399-4 NS3 G 11 KK V R PB399-4 - like serial SN 2176618.6.2 |
| 60 | Spohn & Burkhardt | NS3.2206309 Joystick Drawing: PB399-5 NS3 G 11 SKK V R PB399-5 - like serial SN 2176618.5.1 |
| 61 | Spohn & Burkhardt | VNS0.2003014 Joystick Drawing: SS14642-5 VNS0 5 F E-N 18 AK R G41 T SS SS14642-5 |
| 62 | Spohn & Burkhardt | NS3.2206309 Joystick Drawing: PB399-5 NS3 G 11 SKK V R PB399-5 as SN2176618.6.2 |
| 63 | Spohn & Burkhardt | NS3.2206304 Joystick Drawing: PB399-4 NS3 G 11 KK V R PB399-4 as SN2176618.5.1 |
| 64 | Spohn & Burkhardt | VNS0.2003014 Joystick Drawing: SS14642-5 VNS0 5 F E-N 18 AK R G41 T SS SS14642-5 |
| 65 | Spohn & Burkhardt | VNS0.2206864 Joystick VNS0 2 2 F V-U 18 AK R G41 HD S Z 5P0 5P0 POTI POTI |
| 66 | Spohn & Burkhardt | VNS0.2206865 Joystick VNS0 2 2 F V-N 18 KK R G41 Z 5P0 5P0 POTI POTI |
| 67 | Spohn & Burkhardt | Double contact element ID No. 51901 Spare parts pack Double contact element;blue with soldering lug;Joystick: VCS0 |
| 68 | Spohn & Burkhardt | VNS0.2206864 Joystick VNS0 2 2 F V-U 18 AK R G41 HD S Z 5P0 5P0 POTI POTI |
| 69 | Spohn & Burkhardt | VNS0.2206865 Joystick VNS0 2 2 F V-N 18 KK R G41 Z 5P0 5P0 POTI POTI |
| 70 | Spohn & Burkhardt | SV1C.2207172 Control station SV1C Drawing: SV1C-*** SV1C SV1C-*** SV1C line Basic-Line Consoles form Consoles form AS front sloped top cover Console size Console size 250x600mm Layout-laser cutting Customer-specific layout with more than 10 button Drawing SV1C-*** Armrests AS1-18 Turntable cast Standard Rotating function Notching by pin lock Rotation angle 90°-0-180° Lower seat structure Mech. suspension, 4 steps height adjustment Base standard Base 960 Seat S210Y SV1C S K F Wiring control station Without wiring Color of control station R7016+7047+9011 Packaging Additional price S210Y SV1C S K F.2207168 Seat seat with Y-cut S210Y Lower seat structure Mech. suspension, 4 steps height adjustment Upholstery Upholstery textile black Headrest Headrest small anthracite - Turnable control station SV1C with below mentioned controllers VNS0. - Rotating function with stop positions at 90°-0-180°. (release by footpedal). - Consoles (250 x 600 370 mm (BxLxH)), with customer specific layout. - Coloring of the powder coating acc. CI-SV1C: Top of consoles: RAL7047 Lower part of consoles: RAL7016 Base: RAL9011 - Without further installations. Including: 1pcs Joystick VNS0.2207181 (VNS0 2 2 F EA-X 11 KK R 9P1 9P1 OER8G- 1 OER8G- 1) 1pcs Joystick VNS0.2207179 (VNS0 2 F E-N 11 AK R 9P1 OER8G- 1) Single-axis-controller mounted in the left console. Handle UGN with four pushbuttons at the top and deadmann-trigger |
| 71 | Spohn & Burkhardt | Pendant H-011 Rectangular, plastic, color yellow, with - Roll bar with handle bars. - Cable gland PG21 (clamping range Ø18..20 mm). - Seal between upper and lower part (IP65). - Upper part with drillings for 1x controller M0N and 10x Ø22,5 mm. - Without control devices. |
| 72 | Spohn & Burkhardt | Joystick SM0N6 KK VR HD 10.10 - Dual-axis-controller, - 1-0-1 steps per axis, - crossgate, - handle with pushbutton. |
| 73 | Spohn & Burkhardt | CS1.2203665 Joystick Drawing: CS1-A16 CS1 G 11 AK V R M1 M1 CS1-A16 |
| 74 | Spohn & Burkhardt | Pendant H-011 Rectangular, plastic, color yellow, with - Roll bar with handle bars. - Cable gland PG21 (clamping range Ø18..20 mm). - Seal between upper and lower part (IP65). - Upper part with drillings for 1x controller M0N and 10x Ø22,5 mm. - Without control devices. |
| 75 | Spohn & Burkhardt | Joystick SM0N6 KK VR HD 10.10 - Dual-axis-controller, - 1-0-1 steps per axis, - crossgate, - handle with pushbutton. |
| 76 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 77 | Spohn & Burkhardt | NS3.2204565 Joystick Drawing: PB203A-L NS3 G 11 AK V R PB203A-L Note: UGAL handel is a replacement for UGCL |
| 78 | Spohn & Burkhardt | PQS55 Potentiometer, wire-wound, 5k-5k Order Code: 56404 |
| 79 | Spohn & Burkhardt | 36768 Drive-brake master controller: handle BNSD-KT, analysing electronic ESS080A, 1x encoder OGRPP20I with 3 m extension cable VNS016F11-SS/SM12422-5AYYY |
| 80 | Spohn & Burkhardt | VNS0.1600208 Joystick Drawing: SS15220 VNS0 4 F E-N 14 AK B SS15220 |
| 81 | Spohn & Burkhardt | VNS0.2300220 Joystick VNS0 2 2 F V-N 14 KK R G41 3 3 |
| 82 | Spohn & Burkhardt | VNS0.2300221 Joystick VNS0 2 2 F V-U 14 KK R G41 3 3 |
| 83 | Spohn & Burkhardt | VNS0.2101907 Joystick VNS0 4 4 F V-N 18 AK R G41 Z 500 500 |
| 84 | Spohn & Burkhardt | VNS0.2101908 Joystick VNS0 4 F E-U 18 SZK R G41 Z 500 |
| 85 | Spohn & Burkhardt | SV1C.2301114 Control station SV1C Drawing: SV1C*** SV1C line: with adjustable consoles Consoles form: Sloped at the front Console size: 300 x 600 mm Additional options for the console height, length, tilt adjust. Layout-laser cutting: Customer-specific layout with more than 10 button Drawing: SV1C*** Armrests: On the seat Foot rest: Foot rest adjustable in height Turntable cast: Standard Rotating function: Reinforced notching by pin lock Rotation angle: 90°-0-90°-180° Lower seat structure: Manual height and tilt system combined with mech. suspension Base: 1180 mm + hose fittings Seat: S210Y SV1C S A K HG HN.F Addition: Rotation with emerg. release Wiring control station: Without wiring Color of control station: RAL7047, 7016, 9011 packaging : Wooden box 1400x1150x1250 cm S210Y SV1C S A K HG HN.F.2301113 Seat: seat with Y-cut S210Y Armrests: On the seat Lower seat structure: Manual height and tilt system combined with mech. suspension Armrests on the seat: Armrest standard Upholstery: Upholstery textile black Headrest: Headrestsmall anthracite Belt: Shoulder belt - Rotating operator console SV1C with 300 x 600 mm adjustable consoles. Turning radius approx. 716 mm. - Consoles manually adjustable in longitudinal direction, height and incline. - Rotary motion with reinforced notching system and emergency release from behind. - Base with adjustable footrest. - Seat with V-cut in the seat cushion, adjustable armrests and headrest. Backrest with mechanical lumbar support. With 3-point shoulder harness, static. Seat upholstered in black fabric and vinyl at the sidewalls. - Mechanical suspension in combination with additional height and tilt adjustment. - With the two below mentioned controllers VNS0. - 54 pcs. control devices Ø22 mm (type XB4), by Schneider Electric, acc. customer partslist. Arrangement acc. to customer specifications. Controllers and control devices incl. label plates. - Without microfon and intercom. 2pcs Joystick VNS0.2301105 (VNS0 2 F E-N 18 AK R G41 HK OS 9P1 OER8G- 1) 2pcs Joystick VNS0.2301107 (VNS0 2 2 F EA-X 18 KK R G41 HK OS 9P1 9P1 OER8G- 1 OER8G- 1) |
| 86 | Spohn & Burkhardt | VNS0.2301107 Joystick VNS0 2 2 F EA-X 18 KK R G41 HK OS 9P1 9P1 OER8G- 1 OER8G- 1 |
| 87 | Spohn & Burkhardt | VNS0.2301105 Joystick VNS0 2 F E-N 18 AK R G41 HK OS 9P1 OER8G- 1 |
| 88 | Spohn & Burkhardt | 41269 master controller 2-axis with: profibus-DP-interface, universal handle with 7 pushbutton NS3G 11 AK VR - PB83-D-2 PB83-D-2 replacement for PB83-D-1 |
| 89 | Spohn & Burkhardt | VNS0.2202857 Joystick VNS0 2 2 F EA-X 11 AK R 9P1 9P1 OER8G- 1 OER8G- 1 |
| 90 | Spohn & Burkhardt | SITZ.2301547 Seat S722 SV1C S TN A KS HFN Seat: seat S722 Armrests: On the seat Seat cushion depth and tilt adjustment: Yes Lower seat structure: Mechanical suspension KM80F (HFN) with height/tilt adjustment Armrests on the seat: Armrest standard Upholstery: Upholstery textile black Headrest: Headrest small cover textile black (matrix) - alternative seat to their type ISRI 6030/880 NTS |
| 91 | Spohn & Burkhardt | SITZ.2301547 Seat S722 SV1C S TN A KS HFN Seat: seat S722 Armrests: On the seat Seat cushion depth and tilt adjustment: Yes Lower seat structure: Mechanical suspension KM80F (HFN) with height/tilt adjustment Armrests on the seat: Armrest standard Upholstery: Upholstery textile black Headrest: Headrest small cover textile black (matrix) - alternative seat to their type ISRI 6030/880 NTS |
| 92 | Spohn & Burkhardt | Joystick M0N 6 VR HDS W W |
| 93 | Spohn & Burkhardt | VNS0.2207181 Joystick VNS0 2 2 F EA-X 11 KK R 9P1 9P1 OER8G- 1 OER8G- 1 |
| 94 | Spohn & Burkhardt | VNS0.2207179 Joystick VNS0 2 F E-N 11 AK R 9P1 OER8G- 1 |
| 95 | Spohn & Burkhardt | VNS0.2207179 Joystick VNS0 2 F E-N 11 AK R 9P1 OER8G- 1 |
| 96 | Spohn & Burkhardt | VNS0.2207181 Joystick VNS0 2 2 F EA-X 11 KK R 9P1 9P1 OER8G- 1 OER8G- 1 |
| 97 | Spohn & Burkhardt | VNS0.2301951 Joystick VNS0 3 3 F V-U 18 KK R G41 (13) (13) Drive V-U Steps in view direction 1-0-1 Circuit in view direction :(13) Lever deflection in view direction 14° Operating type view direction Spring return Steps in cross direction 1-0-1 Circuit in cross direction :(13) Lever deflection in cross direction 14° Operating type cross direction Spring return Handle G41 Lever length 180mm Mounting Front Escutcheon plate S3 Rubber boot holder Engraving No engraving Gate Cross gate (symmetric) Contact Silver contact sequence with 3 double contact elements each axis: 1-0-1 steps without zero contact without potentiometer Please note that the panel cut-out is different to the one from Schneider joystick |
| 98 | Spohn & Burkhardt | 47182 Spare parts pack Double contact element with SILVER plated contacts Joystick:VNS0,NNS0,NS00 |
| 99 | Spohn & Burkhardt | VNS0.2300220 Joystick VNS0 2 2 F V-N 14 KK R G41 3 3 |
| 100 | Spohn & Burkhardt | VNS0.2300221 Joystick VNS0 2 2 F V-U 14 KK R G41 3 3 |
| 101 | Spohn & Burkhardt | CS1.2205980 Joystick Drawing: CAN1006T-A CS1 G 11 AK V B CAN1006T-A Joystick type CS1G Drive V Steps in view direction Zero notching Circuit in view direction without contacts Lever deflection in view direction 26° Operating type view direction Friction brake Steps in cross direction Zero notching Circuit in cross direction without contacts Lever deflection in cross direction 26° Operating type cross direction Spring return Handle UGA Lever length 110mm; 8mm Boot Rubber boot Engraving No engraving Gate Limiting gate (symmetric) Drawing CAN1006T-A CANOPEN connection version D-SUB cable outlet cable outlet at the endplate Housing interface module Mounting depth 100mm UGA.1804799 Type UGA Mounting position 3 P9 F S YE Mounting position 4 P9 F S BK Mounting position 5 Lever switch Mounting position 7Lo P9 F S BK Mounting position 7Lu P9 F S BK Mounting position 7Ro P9 F S BK Mounting position 7Ru P9 F S BK Mounting position 8 P9 H S RD Mounting position 9 P9 H S GN The offered controller CAN1006T-A replaces the formaly type CAN6T. |
| 102 | Spohn & Burkhardt | CS1.2205980 Joystick Drawing: CAN1006T-A CS1 G 11 AK V B CAN1006T-A Joystick type CS1G Drive V Steps in view direction Zero notching Circuit in view direction without contacts Lever deflection in view direction 26° Operating type view direction Friction brake Steps in cross direction Zero notching Circuit in cross direction without contacts Lever deflection in cross direction 26° Operating type cross direction Spring return Handle UGA Lever length 110mm; 8mm Boot Rubber boot Engraving No engraving Gate Limiting gate (symmetric) Drawing CAN1006T-A CANOPEN connection version D-SUB cable outlet cable outlet at the endplate Housing interface module Mounting depth 100mm UGA.1804799 Type UGA Mounting position 3 P9 F S YE Mounting position 4 P9 F S BK Mounting position 5 Lever switch Mounting position 7Lo P9 F S BK Mounting position 7Lu P9 F S BK Mounting position 7Ro P9 F S BK Mounting position 7Ru P9 F S BK Mounting position 8 P9 H S RD Mounting position 9 P9 H S GN The offered controller CAN1006T-A replaces the formaly type CAN6T. |
| 103 | Spohn & Burkhardt | Foot Pedal Model: FPS-F30 |
| 104 | Spohn & Burkhardt | SV1C.2207172 Control station SV1C Drawing: SV1C-*** SV1C SV1C-*** SV1C line Basic-Line Consoles form Consoles form AS front sloped top cover Console size Console size 250x600mm Layout-laser cutting Customer-specific layout with more than 10 button Drawing SV1C-*** Armrests AS1-18 Turntable cast Standard Rotating function Notching by pin lock Rotation angle 90°-0-180° Lower seat structure Mech. suspension, 4 steps height adjustment Base standard Base 960 Seat S210Y SV1C S K F Wiring control station Without wiring Color of control station R7016+7047+9011 Packaging Additional price S210Y SV1C S K F.2207168 Seat seat with Y-cut S210Y Lower seat structure Mech. suspension, 4 steps height adjustment Upholstery Upholstery textile black Headrest Headrest small anthracite - Turnable control station SV1C with below mentioned controllers VNS0. - Rotating function with stop positions at 90°-0-180°. (release by footpedal). - Consoles (250 x 600 370 mm (BxLxH)), with customer specific layout. - Coloring of the powder coating acc. CI-SV1C: Top of consoles: RAL7047 Lower part of consoles: RAL7016 Base: RAL9011 - Without further installations. Including: 1pcs Joystick VNS0.2207181 (VNS0 2 2 F EA-X 11 KK R 9P1 9P1 OER8G- 1 OER8G- 1) 1pcs Joystick VNS0.2207179 (VNS0 2 F E-N 11 AK R 9P1 OER8G- 1) Single-axis-controller mounted in the left console. Handle UGN with four pushbuttons at the top and deadmann-trigger |
| 105 | Spohn & Burkhardt | Joystick for left Model: VNS0 3 B E-X 18 SK R G41-Z 30 Joystick type: VNS0 Drive: E-X Operating type view direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate special gate |
| 106 | Spohn & Burkhardt | Joystick for right Model: VNS0 3 3 B V-U 18 KK R G41-Z 30 30 Joystick type: VNS0 Drive: V-U Operating type view direction: Spring return Operating type cross direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate: Cross gate |
| 107 | Spohn & Burkhardt | Joystick for Hoisting Model: VNS0 2 B E-X 18 SK R G41 4P0 PQ55 Joystick type: VNS0 Drive: E-X Operating type view direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate special gate Potentiometer: 5k-0-5k (ohm) |
| 108 | Spohn & Burkhardt | Joystick for Luffing & Slewing Model: VNS0 3 3 B V-U 18 KK R G41 4P20 4P20 PQ55 PQ55 Joystick type: VNS0 Drive: V-U Operating type view direction: Spring return Operating type cross direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate: Cross gate Potentiometer: 5k-0-5k (ohm) |
| 109 | Spohn & Burkhardt | Joystick for left Model: VNS0 3 B E-X 18 SK R G41-Z 30 Joystick type: VNS0 Drive: E-X Operating type view direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate special gate |
| 110 | Spohn & Burkhardt | Joystick for right Model: VNS0 3 3 B V-U 18 KK R G41-Z 30 30 Joystick type: VNS0 Drive: V-U Operating type view direction: Spring return Operating type cross direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate: Cross gate |
| 111 | Spohn & Burkhardt | Joystick for Hoisting Model: VNS0 2 B E-X 18 SK R G41 4P0 PQ55 Joystick type: VNS0 Drive: E-X Operating type view direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate special gate Potentiometer: 5k-0-5k (ohm) |
| 112 | Spohn & Burkhardt | Joystick for Luffing & Slewing Model: VNS0 3 3 B V-U 18 KK R G41 4P20 4P20 PQ55 PQ55 Joystick type: VNS0 Drive: V-U Operating type view direction: Spring return Operating type cross direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate: Cross gate Potentiometer: 5k-0-5k (ohm) |
| 113 | Spohn & Burkhardt | Joystick for left Model: VNS0 3 F E-X 18 SK R G41-Z 30 Joystick type: VNS0 Drive: E-X Operating type view direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate special gate |
| 114 | Spohn & Burkhardt | Joystick for right Model: VNS0 3 3 F V-U 18 KK R G41-Z 30 30 Joystick type: VNS0 Drive: V-U Operating type view direction: Spring return Operating type cross direction: Spring return Handle: G41 with Interlock Lever length 180mm Gate: Cross gate |
| 115 | Spohn & Burkhardt | Joystick Model: VNS0 3 3 F V-N 14 KK R G41 40 40 Steps in view direction: 4-0-4 Drive: V-N Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 40 Spring return per axis |
| 116 | Spohn & Burkhardt | Joystick Model: VNS0 3 F V-U 14 KK R G41 40 Steps in view direction: 3-0-3 Drive: V-U Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 40 Spring return per axis |
| 117 | Spohn & Burkhardt | SV1C.2207172 SV1C SV1C-*** SV1C line Basic-Line Consoles form Consoles form AS front sloped top cover Console size Console size 250x600mm Layout-laser cutting Customer-specific layout with more than 10 button Drawing SV1C-*** Armrests AS1-18 Turntable cast Standard Rotating function Notching by pin lock Rotation angle 90°-0-180° Lower seat structure Mech. suspension, 4 steps height adjustment Base standard Base 960 Seat S210Y SV1C S K F Wiring control station Without wiring Color of control station R7016+7047+9011 S210Y SV1C S K F.2207168 Seat seat with Y-cut S210Y Lower seat structure Mech. suspension, 4 steps height adjustment Upholstery Upholstery textile black Headrest Headrest small anthracite - Turnable control station SV1C with below mentioned controllers VNS0. - Rotating function with stop positions at 90°-0-180°. (release by footpedal). - Consoles (250 x 600 370 mm (BxLxH)), with customer specific layout. - Coloring of the powder coating acc. CI-SV1C: Top of consoles: RAL7047 Lower part of consoles: RAL7016 Base: RAL9011 - Without further installations. Including: 1pcs VNS0.2207179 Joystick (VNS0 2 F E-N 11 AK R 9P1 OER8G- 1) 1pcs VNS0.2207181 Joystick (VNS0 2 2 F EA-X 11 KK R 9P1 9P1 OER8G- 1 OER8G- 1) |
| 118 | Spohn & Burkhardt | NNS0.1601939 Joystick NNS0 1 1 F VPI-N 07 AK R PB233-NV-G25 |
| 119 | Spohn & Burkhardt | NNS0.1700385 Joystick NNS0 1 1 F VPI-U 07 AK R PB233-UV-G25 |
| 120 | Spohn & Burkhardt | NNS0.1700385 Joystick NNS0 1 1 F VPI-U 07 AK R PB233-UV-G25 |
| 121 | Spohn & Burkhardt | Order No. 54740 Spare parts pack Rubber boot V041K-G9;Handle: G9,G25;Joystick: VCS0,CS1,NS3,ST0;Operation temperature: -40°C;Color: black |
| 122 | Spohn & Burkhardt | Order No. 54740 Spare parts pack Rubber boot V041K-G9;Handle: G9,G25;Joystick: VCS0,CS1,NS3,ST0;Operation temperature: -40°C;Color: black |
| 123 | Spohn & Burkhardt | VNS0.2302779 Joystick VNS0 2 F E-N 18 R G41 IZ 9P1 POTI |
| 124 | Spohn & Burkhardt | VNS0.2206483 Joystick VNS0 2 2 F V-U 18 KK R G41 IZ 9P1 9P1 POTI POTI |
| 125 | Spohn & Burkhardt | Joystick Model: VNS0 3 3 F EA-X 14 KK R G41 40 40 Steps in view direction: 4-0-4 Drive: EA-X Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 40 Spring return per axis |
| 126 | Spohn & Burkhardt | Joystick Model: VNS0 3 F G-X 14 SK R G41 40 Steps in view direction: 3-0-3 Drive: G-X Lever length: 140mm Gate: Special gate Boot: Rubber boot Handle: G41 Switch: 40 Spring return per axis |
| 127 | Spohn & Burkhardt | Joystick Model: VNS0 3 F E-N 14 SK R G41 40 Steps in view direction: 4-0-4 Drive: E-N Lever length: 140mm Gate: Special gate Boot: Rubber boot Handle: G41 Switch: 40 Spring return per axis |
| 128 | Spohn & Burkhardt | Encoder Order No. 53651 OER8G-1: Optoelectronical absolute encoder for joysticks VNS0xx, output signals: 8-bit-gray code, 2 direction signals, connection cable 0.4 m with D-sub plug |
| 129 | Spohn & Burkhardt | Connecting Cable for Encoder Order No. 36978 OER8xx, OGF6xx, 12-pole, shielded, 1 end with 15-pin-D-SUB socket, 1 end single core, length= 2,2 meters |
| 130 | Spohn & Burkhardt | VCS0.2207090 Joystick VCS0 96 14 AK E-U R G41 40 Drive E-U Steps in view direction 4-0-4 Circuit in view direction 40 Lever deflection in view direction 36° Operating type view direction Spring return Handle G41 Lever length 140mm Boot Rubber boot Escutcheon plate Plastic escutcheon plate transparent Engraving No engraving Gate Limiting gate (symmetric) Contact Silver |
| 131 | Spohn & Burkhardt | VCS0.2208413 Joystick VCS0 96 14 AK V-U R G41 3D0 3D0 Drive V-U Steps in view direction 3-0-3 Circuit in view direction 3D0 Lever deflection in view direction 30° Operating type view direction Spring return Steps in cross direction 3-0-3 Circuit in cross direction 3D0 Lever deflection in cross direction 30° Operating type cross direction Spring return Handle G41 Lever length 140mm Boot Rubber boot Escutcheon plate Plastic escutcheon plate transparent Engraving No engraving Gate Limiting gate (symmetric) Contact Silver |
| 132 | Spohn & Burkhardt | VNS0.2302884 Joystick VNS0 2 F E-X 18 SZK R G41 Z 4P0 PQ55 Drive E-X Steps in cross direction 4-0-4 Circuit in cross direction 4P0 Lever deflection in cross direction 36° Operating type cross direction Spring return Mountings in cross direction PQ55 Mechanical interlock With mechanical interlock Handle G41 Z Lever length 180mm Mounting Front Escutcheon plate S3 Rubber boot holder Engraving No engraving Gate Slot gate Contact Silver PQ55 Ohmic value 5k-0-5kΩ Terminal connection type Plug/soldering connection Potentiometer PQ55 G41 Z Mechanical interlock With mechanical interlock Release Release by lifting slit gate : mechanical interlock in position zero |
| 133 | Spohn & Burkhardt | VNS0.2302885 Joystick VNS0 3 3 F V-U 18 AK R G41 Z 4P20 4P20 PQ55 PQ55 Drive V-U Steps in view direction 4-0-4 Circuit in view direction 4P20 Lever deflection in view direction 36° Operating type view direction Spring return Mountings in view direction PQ55 Steps in cross direction 4-0-4 Circuit in cross direction 4P20 Lever deflection in cross direction 36° Operating type cross direction Spring return Mountings in cross direction PQ55 Mechanical interlock With mechanical interlock Handle G41 Z Lever length 180mm Mounting Front Escutcheon plate S3 Rubber boot holder Engraving No engraving Gate Limiting gate (symmetric) Contact Silver PQ55 Ohmic value 5k-0-5kΩ Terminal connection type Plug/soldering connection Potentiometer PQ55 PQ55 Ohmic value 5k-0-5kΩ Terminal connection type Plug/soldering connection Potentiometer PQ55 G41 Z Mechanical interlock With mechanical interlock Release Release by lifting |
| 134 | Spohn & Burkhardt | VCS0.2302977 Joystick VCS0 96 11 AK E-U R 5P0 OGF6B Note: OGFR6B is obsoleted and replaced by encoder OGF6B + 2m extension cable; UGD is obsoleted and replaced by handle UGA |
| 135 | Spohn & Burkhardt | VCS0.2302980 Joystick VCS0 96 11 AK V-U R 5P0 5P0 OGF6B OGF6B Note: OGFR6B is obsoleted and replaced by encoder OGF6B + 2m extension cable; UGD is obsoleted and replaced by handle UGA |
| 136 | Spohn & Burkhardt | VCS0.2208413 Joystick VCS0 96 14 AK V-U R G41 3D0 3D0 Drive V-U Steps in view direction 3-0-3 Circuit in view direction 3D0 Lever deflection in view direction 30° Operating type view direction Spring return Steps in cross direction 3-0-3 Circuit in cross direction 3D0 Lever deflection in cross direction 30° Operating type cross direction Spring return Handle G41 Lever length 140mm Boot Rubber boot Escutcheon plate Plastic escutcheon plate transparent Engraving No engraving Gate Limiting gate (symmetric) Contact Silver |
| 137 | Spohn & Burkhardt | VCS0.2207090 Joystick VCS0 96 14 AK E-U R G41 40 Drive E-U Steps in view direction 4-0-4 Circuit in view direction 40 Lever deflection in view direction 36° Operating type view direction Spring return Handle G41 Lever length 140mm Boot Rubber boot Escutcheon plate Plastic escutcheon plate transparent Engraving No engraving Gate Limiting gate (symmetric) Contact Silver |
| 138 | Spohn & Burkhardt | VNS0.2206483 Joystick VNS0 2 2 F V-U 18 KK R G41 IZ 9P1 9P1 POTI POTI |
| 139 | Spohn & Burkhardt | Encoder Order No. 53651 OER8G-1: Optoelectronical absolute encoder for joysticks VNS0xx, output signals: 8-bit-gray code, 2 direction signals, connection cable 0.4 m with D-sub plug |
| 140 | Spohn & Burkhardt | Connecting Cable for Encoder Order No. 36978 OER8xx, OGF6xx, 12-pole, shielded, 1 end with 15-pin-D-SUB socket, 1 end single core, length= 2,2 meters (Note: Sales check vs KH xem họ có cần Cable for Encoder hay không nhé?) |
| 141 | Spohn & Burkhardt | VNS0.2202857 Joystick VNS0 2 2 F EA-X 11 AK R 9P1 9P1 OER8G- 1 OER8G- 1 +UGA |
| 142 | Spohn & Burkhardt | VNS0.2303724 Joystick VNS0 2 F A-Y 11 AK R G41 HD OS 9P1 OER8G- 1 Drive A-Y Steps in view direction Zero notching Circuit in view direction 9P1 Lever deflection in view direction 36° Operating type view direction Spring return Mountings in view direction OER8G- 1 Handle G41 HD OS Lever length 110mm Mounting Front Escutcheon plate S3 Rubber boot holder Engraving No engraving Gate Limiting gate (symmetric) Contact Silver OER8G- 1 Encoder OER8G1: Curve characteristic linear Extension cable encoder 2m G41 HD OS Handle function Push button tight Contact 1NC 1NO |
| 143 | Spohn & Burkhardt | Foot pedal Model: FPS- F30 |
| 144 | Spohn & Burkhardt | Joystick Model: NNS0 2 2 F VPI-N 18 AK R H 9P1 9P1 OER8B-1N OER8B-1N |
| 145 | Spohn & Burkhardt | Joystick Model: VNS0 2 F EA-X 18 AK R H 9P1 OER8B-1 |
| 146 | Spohn & Burkhardt | VNS0.1600292 Joystick VNS0 1 1 F EA-X 14 SAK R KG50 8P1 1 POTI Drive EA-X Steps in view direction Zero notching Circuit in view direction 8P1 Lever deflection in view direction 36° Operating type view direction Spring return Mountings in view direction Potentiometer Steps in cross direction 1-0-1 Circuit in cross direction 1 Lever deflection in cross direction 14° Operating type cross direction Spring return Handle KG50 Lever length 140mm Mounting Front Escutcheon plate Plastic escutcheon plate transparent Engraving No engraving Gate Special limiting gate (asymmetric) Contact Silver With 1x coupling for PQ potentiometer but without Potentiometer |
| 147 | Spohn & Burkhardt | VNS0.2304127 Joystick VNS0 2 2 F V-U 18 AK R G41 24 24 Drive V-U Steps in view direction 2-0-2 Circuit in view direction 24 Lever deflection in view direction 20° Operating type view direction Spring return Steps in cross direction 2-0-2 Circuit in cross direction 24 Lever deflection in cross direction 20° Operating type cross direction Spring return Handle G41 Lever length 180mm Mounting Front Escutcheon plate Plastic escutcheon plate transparent Engraving No engraving Gate Limiting gate (symmetric) Contact Silver |
| 148 | Spohn & Burkhardt | CS1.2304153 Joystick Drawing: PB481 CS1 G 11 AK V R MP1 MP1 PB481 (Replacement for joystick Kon. 2194982.1.1 /2194982.1.2) |
| 149 | Spohn & Burkhardt | VNS0.2205874 Joystick VNS0 2 F E-N 18 SZK R G41 IZ 9P1 OER8G- 1 |
| 150 | Spohn & Burkhardt | VNS0.2205267 Joystick VNS0 2 2 F V-U 18 KK R G41 IZ 9P1 9P1 OER8G- 1 OER8G- 1 |
| 151 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 152 | Spohn & Burkhardt | NS3.2205843 Joystick Drawing: PB203C-L NS3 G 11 AK V R PB203C-L |
| 153 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 154 | Spohn & Burkhardt | NS3.2205843 Joystick Drawing: PB203C-L NS3 G 11 AK V R PB203C-L |
| 155 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 156 | Spohn & Burkhardt | NS3.2205843 Joystick Drawing: PB203C-L NS3 G 11 AK V R PB203C-L |
| 157 | Spohn & Burkhardt | Joystick Model: VNS0 4 4 F EA-X 14 KK R G41 50 50 Steps in view direction: 5-0-5 Drive: EA-X Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 50 Spring return per axis |
| 158 | Spohn & Burkhardt | Joystick Model: VNS0 4 F A-Y 14 KK R G41 50 Steps in view direction: 5-0-5 Drive: A-Y Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 50 Spring return per axis |
| 159 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 160 | Spohn & Burkhardt | NS3.2205843 Joystick Drawing: PB203C-L NS3 G 11 AK V R PB203C-L |
| 161 | Spohn & Burkhardt | Joystick GM0N6VR20.20 |
| 162 | Spohn & Burkhardt | NS3.2204565 Joystick Drawing: PB203A-L NS3 G 11 AK V R PB203A-L |
| 163 | Spohn & Burkhardt | VNS0.2103174 Joystick VNS0 2 F E-N 18 AK R G41 T SS 9P10 OER420- 1 |
| 164 | Spohn & Burkhardt | NNS0.2303986 Joystick NNS0 2 2 F V-N 18 AK R G48 H 9P1 9P1 OER8B- 1N OER8B- 1N *Please check if the offered joystick meets your specification. Your mentioned type was not quite clear! |
| 165 | Spohn & Burkhardt | VNS0.2304719 Joystick VNS0 2 F A-Y 18 AK R G41 H OS 9P1 OER8B- 1 *Please check if the offered joystick meets your specification. Your mentioned type was not quite clear! |
| 166 | Spohn & Burkhardt | VNS0.2103174 Joystick VNS0 2 F E-N 18 AK R G41 T SS 9P10 OER420- 1 |
| 167 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 168 | Spohn & Burkhardt | NS3.2205843 Joystick Drawing: PB203C-L NS3 G 11 AK V R PB203C-L |
| 169 | Spohn & Burkhardt | VNS0.1900026 Joystick VNS0 2 2 F EA-X 11 AK R 9P1K 9P1K PFOE55 PFOE55 Like serial 2021441-1 |
| 170 | Spohn & Burkhardt | VNS0.1601734 Joystick VNS0 2 2 F EA-X 11 AK R 9P1K 1D8 PFOE55 Like serial 2022971-5 |
| 171 | Spohn & Burkhardt | VNS0.1601734 Joystick VNS0 2 2 F EA-X 11 AK R 9P1K 1D8 PFOE55 Like serial 2022971-5 |
| 172 | Spohn & Burkhardt | VNS0.1900026 Joystick VNS0 2 2 F EA-X 11 AK R 9P1K 9P1K PFOE55 PFOE55 Like serial 2021441-1 |
| 173 | Spohn & Burkhardt | Joystick Model: VNS0 4 4 F EA-X 14 KK R G41 50 50 Steps in view direction: 5-0-5 Drive: EA-X Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 50 Spring return per axis |
| 174 | Spohn & Burkhardt | Joystick Model: VNS0 4 F A-Y 14 KK R G41 50 Steps in view direction: 5-0-5 Drive: A-Y Lever length: 140mm Gate: Cross gate Boot: Rubber boot Handle: G41 Switch: 50 Spring return per axis |
| 175 | Spohn & Burkhardt | AS1-30 Armrest 300 x 100 mm Height adjustable, longitudinally adjustable, tiltable Armrests for mounting on side consoles |
| 176 | Spohn & Burkhardt | VNS0.2305214 Joystick VNS0 2 2 F V-N 18 KK R G41 Z 5P0 5P0 POTI POTI |
| 177 | Spohn & Burkhardt | VNS0.2305214 Joystick VNS0 2 2 F V-N 18 KK R G41 Z 5P0 5P0 POTI POTI |
| 178 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
| 179 | Spohn & Burkhardt | NS3.2204550 Joystick Drawing: PB203C-R NS3 G 11 AK E-Y R PB203C-R |
